- Size: 2700*1750*1900mm
- Place of Origin: Guizhou
- Brand Name: Hanover
- Model Number: TDC740
- Weight: 3500.000 kg

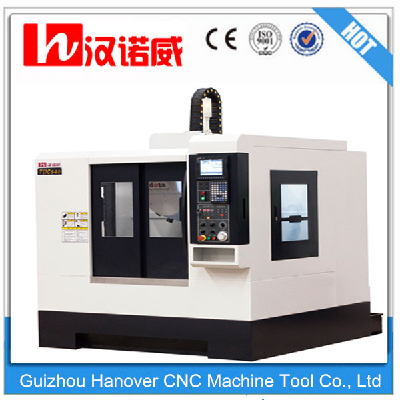

TDC740- Good quality Vertical CNC Drilling and Tapping Machine Center with High-speed
The best option for sophisticated components’ batch processing such as communications, electronics, mobile phones and automobiles industries.
1. Mature and stable structure which is with three -linear guideway structure, large screw, 16T umbrella-like tool changer.
2. Rotational speed of spindle is no less than 12,000 rpm and rapid moving speed of three-axes is no less than 48 meters per minute.
3. The common M3 to M8 threaded hole of aluminum alloy material could be finished tapping within 1.3s.
4. With the cutters’ speedy rotational speed and quick feed,more high processing efficiency.
TDC740- CNC Drilling and Tapping Machine Center S pecifications:
| Item | TDC740 |
| Worktable size(length*width)(mm) | 400*800 |
| Worktable travel(X*Y*Z)(mm) | 700*400*400 |
| T-slot dimension(amount--dimension*distance)(mm) | 3--14*100 |
| Spindle conicity | BT30 |
| Spindle's rotational speed (rpm) | 20000/24000 |
| Tool magazine capacity | 16 |
| Switching time of tool to tool(s) | 1.3 |
| Max. cutting speed(m/min) | 10 |
| Rapid moving speed(m/min) | 48 |
| Distance from spindle center to column guideway(mm) | 400 |
| Positioning accuracy(mm) | ±O.OO3 |
| Re-positioning accuracy(mm) | ±O.OO2 |
| General power(kw) | 10.5 |
| Input power | 50Hz 380V |
| Worktable loading capacity (kg) | 250 |
| Net weight (kg) | 3500 |
| Standard configurations | Optional configurations |
| Siemens 828D controller system | FANUC oi MD or oi mate MD,Mitsubishi M70 |
| Original Siemens complete servo | Taiwan SYNTEC cnc system |
| Schneider electrical | Tool auto-checking instrument |
| Constant-temperature oil cooler of spindle | Siemens,ABB,IDEC Electric |
| Large flow cooling pump | Taiwan PMI,Germany IF Ball screw |
| Oil water separating device | Oil mist collector |
| Automatic centralized lubrication device | Auto chip conveyor |
| Outer-hanging Handheld pneumatic gun | 3-D probe(Automatic measure and calibrate) |
| Full outer stainless steel inner defense and protection | Forth axis and accessories |
Contact:Mr James Feng
Tel:86+0531-81956191
Fax:86+0531-81958181
Mobel:86+18575680287
TDC740- CNC Drilling and Tapping Machine Center packages:
1. Outside package: standard export wooden cases
2. Inner package: Plastic spraying, antirust grease and Stretch film
1.Excellent guarantee and after-sale-service
a. User-friendly English software and detailed videos/CD
b. Free operator training
c. Free maintenance within 1 year for whole machine except of cnc system which guarantee is 3 years
d. 24-hours technical support by Email or Telephone
2. High quality
The main parts of our machines are imported from Japan,Germany and USA. Some are made in Taiwan.
You are welcomed to visit our factory.
3. Low Price
We make sure that for same price, our quality is much more excellent.
4.Customized or special design are OK
