- Size: 2600*1750*1800mm
- Place of Origin: Guizhou
- Brand Name: Hanover
- Model Number: VHC540
- Weight: 3300.000 kg

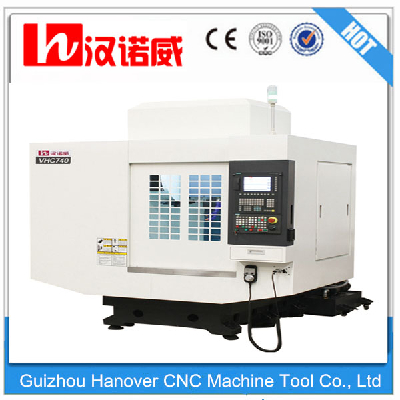

One.Vertical CNC Machining Center-High Speed Milling machining center with 3-axis-VHC540
High-speed! High-efficiency! Upgrading Products for Vertical Machining Center
Speedy and Swift! Quick response! Fast acceleration and deceleration !
Rapid! Fast tool changing! Rapid moving!
Accurate! Rapid rotational speed of spindle!
1. The base is large and thick with sufficient weight and large supporting surface which guarantee strongly for high speed and high precision.
2. Wide chute on both sides ’ large slope benefits for scraps discharging.
3. With large herringbone column which is of steady supporting, its anti-distorting and anti- impact abilities have been greatly improved .
Two.CNC Machining Center- Milling machining center with 3-axis-VHC540 Specifications:
| Item | VHC540 |
| Worktable size(length*width)(mm) | 400*600 |
| Worktable travel(X*Y*Z)(mm) | 510*400*310 |
| T-slot dimension(amount--dimension*distance)(mm) | 3--14*100 |
| Spindle conicity | BT30 |
| Spindle's rotational speed (rpm) | 15000/20000/24000 |
| Tool magazine capacity | 20+1 |
| Switching time of tool to tool(s) | 0.7 |
| Max. cutting speed(m/min) | 10 |
| Rapid moving speed(m/min) | 64 |
| Distance from spindle center to column guideway(mm) | 400 |
| Positioning accuracy(mm) | ±O.OO3 |
| Re-positioning accuracy(mm) | ±O.OO2 |
| General power(kw) | 10.5 |
| Input power | 50Hz 380V |
| Worktable loading capacity (kg) | 200 |
| Net weight (kg) | 3300 |
| Standard configurations | Optional configurations |
| Siemens 828D controller system | FANUC oi MD or oi mate MD,Mitsubishi M70 |
| Original Siemens complete servo | Taiwan SYNTEC cnc system |
| Schneider electrical | Siemens,ABB,IDEC Electric |
| Constant-temperature oil cooler of spindle | Taiwan PMI,Germany IF Ball screw |
| Large flow cooling pump | Tool auto-checking instrument |
| Oil water separating device | Oil mist collector |
| Automatic centralized lubrication device | Auto chip conveyor |
| Outer-hanging Handheld pneumatic gun | 3-D probe(Automatic measure and calibrate) |
| Full outer stainless steel inner defense and protection | Forth axis and accessories |
