- Size: 2700*1750*2600mm
- Place of Origin: Guizhou
- Brand Name: Hanover
- Model Number: TDC740
- Weight: 3500.000 kg

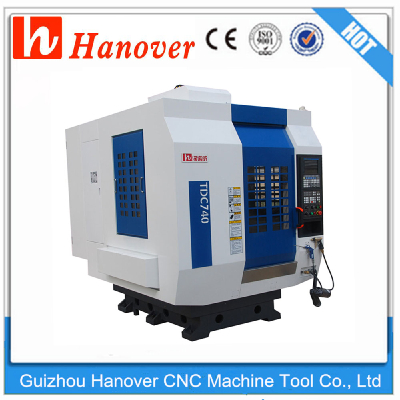

TDC740- cnc tapping center with vertical machining center price
The best option for sophisticated components’ batch processing such as communications, electronics, mobile phones and automobiles industries.
1. Mature and stable structure which is with three -linear guideway structure, large screw, 16T umbrella-like tool changer.
2. Rotational speed of spindle is no less than 12,000 rpm and rapid moving speed of three-axes is no less than 48 meters per minute.
3. The common M3 to M8 threaded hole of aluminum alloy material could be finished tapping within 1.3s.
4. With the cutters’ speedy rotational speed and quick feed,more high processing efficiency.
TDC740- cnc tapping center with vertical machining center price Specifications:
| Item | TDC740 |
| Worktable size(length*width)(mm) | 400*800 |
| Worktable travel(X*Y*Z)(mm) | 700*400*400 |
| T-slot dimension(amount--dimension*distance)(mm) | 3--14*100 |
| Spindle conicity | BT30 |
| Spindle's rotational speed (rpm) | 20000/24000 |
| Tool magazine capacity | 16 |
| Switching time of tool to tool(s) | 1.3 |
| Max. cutting speed(m/min) | 10 |
| Rapid moving speed(m/min) | 48 |
| Distance from spindle center to column guideway(mm) | 400 |
| Positioning accuracy(mm) | ±O.OO3 |
| Re-positioning accuracy(mm) | ±O.OO2 |
| General power(kw) | 10.5 |
| Input power | 50Hz 380V |
| Worktable loading capacity (kg) | 250 |
| Net weight (kg) | 3500 |
| Standard configurations | Optional configurations |
| Siemens 828D controller system | FANUC oi MD or oi mate MD,Mitsubishi M70 |
| Original Siemens complete servo | Taiwan SYNTEC cnc system |
| Schneider electrical | Tool auto-checking instrument |
| Constant-temperature oil cooler of spindle | Siemens,ABB,IDEC Electric |
| Large flow cooling pump | Taiwan PMI,Germany IF Ball screw |
| Oil water separating device | Oil mist collector |
| Automatic centralized lubrication device | Auto chip conveyor |
| Outer-hanging Handheld pneumatic gun | 3D probe(Automatic measure and calibrate) |
| Full outer stainless steel inner defense and protection | Forth axis and accessories |
| 1, electric configurations of tapping machining center price TDC740: | ||
| Travel No. | Name | Brand Habitat |
| 1 | CNC System | MITSUBISHI/FANUC(Japan)SIEMENS(Germany) |
| 2 | Drive motor | MITSUBISHI/FANUC(Japan) SIEMENS(Germany) |
| 3 | Spindle motor | MITSUBISHI/FANUC(Japan)SIEMENS(Germany) |
| 4 | Relay | SCHNEIDER(France) |
| 5 | Contactor | SCHNEIDER(France) |
| 6 | Breaker | SCHNEIDER(France) |
| 7 | Transformer | JUCHE(China) |
| 8 | Switch power supply | MEAN WELL(Taiwan) |
| 9 | Electron hand wheel | Japan/Germany |
| 10 | Water tank motor | China |
| 2, mechniacal configurations of tapiing machining center price TDC740: | ||
| Travel No. | Name | Brand Habitat |
| 1 | Spindle | PUSON(Taiwan ) |
| 2 | Coupling shaft | R+W(Germany) |
| 3 | Pressurizes vat | HAOCHENG or SANGPIN(Taiwan ) |
| 4 | Lead scrwe of three axles | YINTAI(Taiwan) |
| 5 | High accuratebeeline lead rail of three axles | YINTAI(Taiwan) |
| 6 | Lubricant oil road | CHINA |
| 7 | Axletree | NSK (Japan ) |
| 8 | 20 bamboo hat style or 24 manipulator tool store | China |
| 9 | Accurate round nut | Taiwan |
| 10 | Whole machine bolt | Taiwan |
