- Size: 2160*1630*1720MM
- Place of Origin: Guizhou
- Brand Name: Hanover
- Model Number: CK650
- Weight: 2600.000 kg

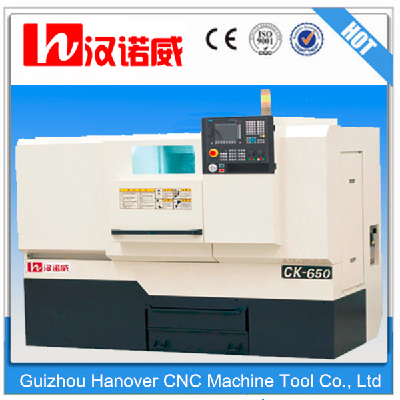

ONE CK650 China manufacturing machine /Horizontal cnc lathe machine price
1.Rigid construction of the machine frame,the flat bed made of premium Yunnan cast-iron.
2.Wide V-block guides,hardened-superior rigidity of the lathe flat bed .
3.Headstock and main spindle and gears were constructed to ensure temperature balance and minimum heat influence.
4.Converter is with close loop which could directly detect the signals from spindle encoder. Once rotational speed of spindle slo wed down, the converter would immediately start to close loop. And its output n.m is over twice as much as that of rating in 30s and cut down the possibility of lathes’ breakdown.
5.The solid tailstock has a large quill with MT4 taper and is especially rigid and load-resistant
6.An automatic 4-station tool turret increases productivity even in small batch productions
7.Manual control and easy set-up and measuring of tools and workpieces
8.automatic central lubrication for simplified maintenance
Two.CK650 China manufacturing machine /Horizontal cnc lathe machine price Specifications:
Specifications Proton | unit | CK-650 |
Working area | ||
Max.turning diameter over bed | mm | 702 |
Max.turning diameter over support | mm | 665 |
Part length(max.) | mm | 450 |
Headstock | ||
spindle bore | mm | 86 |
spindle mount | ISO A2-8 | |
speed range | rpm | 20-2000 |
chuck diameter | mm | 250 |
Tool turret | ||
tool stations | 4 | |
tool shank dimensions | mm | 25*25 |
tool diameter | mm | 25 |
Accuracy | ||
positioning accuracy | mm | 0.012 |
repeatability | mm | 0.006 |
processing ovality | mm | 0.005 |
processing Roughness | Ra1.2 | |
Tailstock | ||
tailstock quill stroke | mm | 150 |
tailstock quill diameter | mm | 60 |
tailstock taper | MT4 | |
Drive Capacities | ||
main motor rating | kw | 7.5 |
motor rating X /Z axis | kw | 1.6/1.9 |
Dimensions/Weight | ||
overall dimensions(L*W*H) | mm | 2160*1630*1720 |
weight | kg | 2600 |
Standard configurations | Optional configurations |
Operator manual and programming instructions | Siemens 808D/KND1000TI cnc controller system |
Premium cast-iron construction ---YUNNAN | Hydraulic chuck or Pneumatic chuck |
Wide V-block guide,hardened and ground | Hydraulic tailstock or Pneumatic tailstock |
Rigid headstock and main spindle | Soft jaws/ 4 jaw chuck |
4-station electrical tool turret | 6/8-station electric tool turret |
Automatic central lubrication | Automatic bar feeding |
Automatic coolant system | Automatic chip conveyor |
CNC system: Fanuc | |
operating tools | |
Worke lamp | |
hand-wheel | |
USB port |
CK650-Flat Bed CNC Lathe packages:
1. Outside package: standard export wooden cases
2. Inner package: Plastic spraying, antirust grease and Stretch film
