- Size: 2000*1380*1600mm
- Place of Origin: Guizhou
- Brand Name: Hanover
- Model Number: CK6136
- Weight: 1850.000 kg

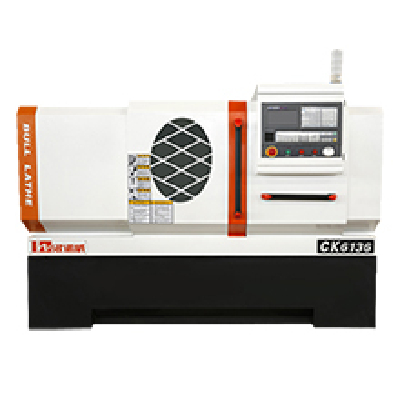

1.High Quality CNC Lathe CK6136
1.Rigid construction of the machine frame,the flat bed made of premium Yunnan cast-iron.
2.Wide V-block guides,hardened-superior rigidity of the lathe flat bed .
3.Headstock and main spindle and gears were constructed to ensure temperature balance and minimum heat influence.
4.Converter is with close loop which could directly detect the signals from spindle encoder. Once rotational speed of spindle slo wed down, the converter would immediately start to close loop. And its output n.m is over twice as much as that of rating in 30s and cut down the possibility of lathes’ breakdown.
5.The solid tailstock has a large quill with MT4 taper and is especially rigid and load-resistant
6.An automatic 4-station tool turret increases productivity even in small batch productions
7.Manual control and easy set-up and measuring of tools and workpieces
8.automatic central lubrication for simplified maintenance
2.High Quality CNC Lathe Specifications:
Specifications Proton unit CK6136 CK6140 Working area Max.turning diameter over bed mm 420 420 Max.turning diameter over support mm 210 230 Part length(max.) mm 750 750 Headstock spindle bore mm 58 66 spindle mount ISO D6 ISO D6 speed range rpm 2500 2500 chuck diameter mm 20 20 Tool turret tool stations 4 4 tool diameter mm 25 25 Accuracy positioning accuracy mm 0.01 0.01 repeatability mm ±0.003 ±0.003 processing ovality mm 0.004 0.004 processing Roughness μm Ra1.0 Ra1.0 Tailstock tailstock quill stroke mm 150 150 tailstock quill diameter mm 60 60 tailstock taper MT4 MT4 Drive Capacities main motor rating kw 5.5 5.5 motor rating X /Z axis kw 1.6/1.9 1.6/1.9 Dimensions/Weight overall dimensions(L*W*H) mm 1910*1240*1500 2100*1400*1700 weight kg 1850 1950
CK6136-Flat Bed CNC Lathe packages:
1. Outside package: standard export wooden cases
2. Inner package: Plastic spraying, antirust grease and Stretch film
Our service
1.Excellent guarantee and after-sale-service
a. User-friendly English software and detailed videos/CD
b. Free operator training
c. Free maintenance within 1 year for whole machine except of cnc system which guarantee is 3 years
d. 24-hours technical support by Email or Telephone
2. High quality
The main parts of our machines are imported from Japan,Germany and USA. Some are made in Taiwan.
You are welcomed to visit our factory.
3. Low Price
We make sure that for same price, our quality is much more excellent.
4.Customized or special design are OK
We are looking for AGENTS in your countries, we’ll support machines and give low prices for our agents, and will support agents to take part in Exhibition in your countries, etc. If you are interested to be our agent, more details policy please feel free to contact me (James)
