- Size: 2600*2200*2500MM
- Place of Origin: Guizhou
- Brand Name: Hanover
- Model Number: VMC650
- Weight: 3800.000 kg

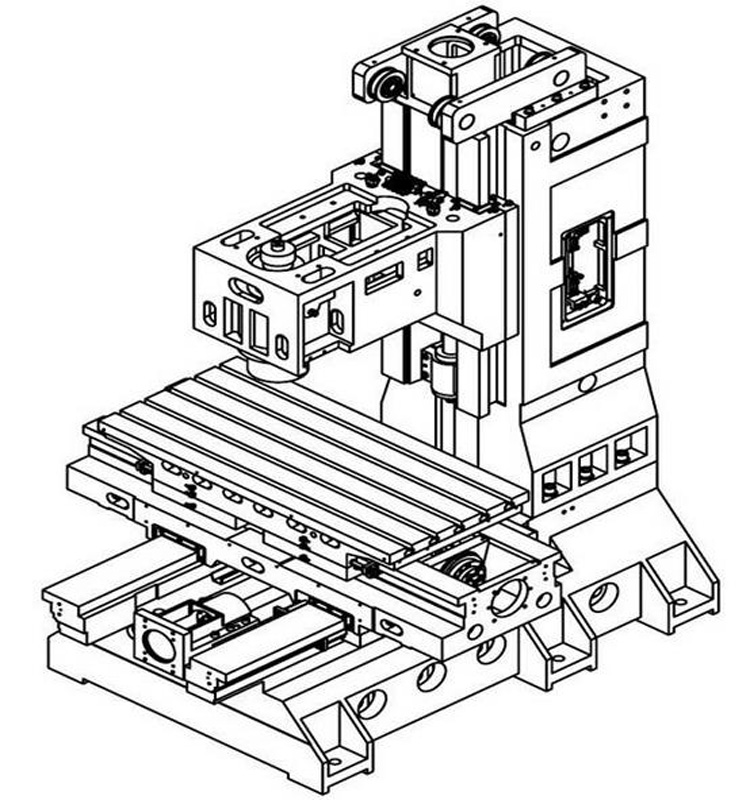

One. High Rigidity CNC Machine Center With Vertical Machine Center type VMC 650 Features:
1.High rigidity structure,best stabilization.
2.Main structure achieves its best high rigidity and stablization through the analysis of finite element.
3.The stabilization of castings machining precision can be guaranteed through twice seasoning.
4.All three axles adopt pre-pulling function and this can avoid distortion when heating and make sure the precision when fast operating.
5.Three axles x,y,z all adopt LM guide which is of high rigidity,low noise and less friction.This can do fast displacement and get best circle precision.
6.Adopting the high-speed,high precision guide rail.
7.Owning rib-strengthened structure,providing spindles stable support.
8.High-speed, high-precision spindle.
9.Using loads support design.
10.Tank-style structure makes good rigidity.
11.Adopting double structure,stable chassis.
Two. Specifications of High Rigidity CNC Machine Center With Vertical Machine Center type VMC 650 :
| Item | Model | Unit | VMC 650 |
| table | table | mm | 500*800 |
| T-solt X width | mm | 3*18 | |
| Table load MAX | kg | 350 | |
| Trave | X/Y/Z travel | mm | 600/500/500 |
| Distance from spindle nose end face to table upper surface | mm | 110-610 | |
| Distance from spindle center line to column guide way surface | mm | 560 | |
| Motor power | kw | 3.7/5.5 | |
| Spindel's rotational speed | rpm | 8,000/10,000 | |
| Spindel taper | BT40 | ||
| Spindel diameter | mm | 130 | |
| Feeds | X axis rapid speed | m/min | 36 |
| Y axis rapid speed | m/min | 36 | |
| Z axis rapid speed | m/min | 24 | |
| Cutting feed speed | mm/min | 1-20000 | |
| precision | Positioning accuracy | mm | 0.015 |
| Repeat accuracy | mm | 0.005 | |
| Tool magazine | Tool magazine capacity | 16/20/24 | |
| Tool diameter/length | mm | 78/300 | |
| Tool-changing time | sec | 3 | |
| Diameter | mm | 78 | |
| Length | mm | 300 | |
| Weight | kg | 10 | |
| All | Weight | kg | 4300 |
| Dimentions(L*W*H) | mm | 2600*2200*2500 |
Three.chief configurations of High Rigidity CNC Machine Center With Vertical Machine Center Type VMC 650:
| Electric configurations of High Rigidity CNC Vertical Machine Center VMC 650 : | ||
| Travel No. | Name | Brand Habitat |
| 1 | CNC System | MITSUBISHI/FANUC(Japan)SIEMENS(Germany) |
| 2 | Drive motor | MITSUBISHI/FANUC(Japan) SIEMENS(Germany) |
| 3 | Spindle motor | MITSUBISHI/FANUC(Japan)SIEMENS(Germany) |
| 4 | Relay | SCHNEIDER(France) |
| 5 | Contactor | SCHNEIDER(France) |
| 6 | Breaker | SCHNEIDER(France) |
| 7 | Transformer | JUCHE(China) |
| 8 | Switch power supply | MEAN WELL(Taiwan) |
| 9 | Electron hand wheel | Japan/Germany |
| 10 | Water tank motor | China |
| Mechniacal configurations of High Rigidity CNC Vertical Machine Center VMC 650 : | ||
| Travel No. | Name | Brand Habitat |
| 1 | Spindle | PUSON(Taiwan ) |
| 2 | Coupling shaft | R+W(Germany) |
| 3 | Pressurizes vat | HAOCHENG or SANGPIN(Taiwan ) |
| 4 | Lead scrwe of three axles | YINTAI(Taiwan) |
| 5 | High accuratebeeline lead rail of three axles | YINTAI(Taiwan) |
| 6 | Lubricant oil road | CHINA |
| 7 | Axletree | NSK (Japan ) |
| 8 | 20 bamboo hat style or 24 manipulator tool store | China |
| 9 | Accurate round nut | Taiwan |
| 10 | Whole machine bolt | Taiwan |
Contact:Mr James Feng
Tel:86+0531-81956191
Fax:86+0531-81958181
Mobel:86+18575680287
Skype:james-13412
High Rigidity CNC Machine Center With Vertical Machine Center type VMC 650
The history of Guizhou Hanover numerial control machine is over 20 years.During the years of development and exploring, we has accumulated a large of experience,and also has intensive study in processing parts.As long as the customers tell us what kind of parts they need ,we will recommend the most appropriate lathes for them.
Over the past 20 years, we survived. The reason of our survival was because of concentration and following the trend of the times. we stick to researching and developing when the economy develops. The survival of our company depends on the qulity of the products when the economic depression. That is the philosophy of our company
1.Excellent guarantee and after-sale-service
a. User-friendly English software and detailed videos/CD
b. Free operator training
c. Free maintenance within 1 year for whole machine except of cnc system which guarantee is 3 years
d. 24-hours technical support by Email or Telephone
2. High quality
The main parts of our machines are imported from Japan,Germany and USA. Some are made in Taiwan.
You are welcomed to visit our factory.
3. Low Price
We make sure that for same price, our quality is much more excellent.
4.Customized or special design are OK
Packaging Details:wooden package or can be adjust for the machine's safey.
Delivery:30 days
- Size: 2600*2200*2500MM
- Place of Origin: Guizhou
- Brand Name: Hanover
- Model Number: VMC650
- Weight: 3800.000 kg
