- Size: 2805*2300*2600mm
- Place of Origin: Guizhou
- Brand Name: Hanover
- Model Number: VMC850
- Weight: 4800.000 kg

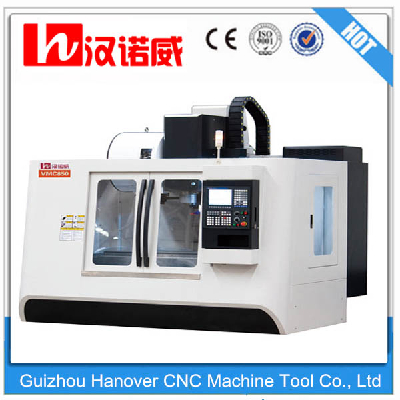

One. High Quality Drilling Machine And High Precision CNC Drilling Machine Tool VMC850 Features:
1. e xcellent damping properties
2.high rigidity
3.excellent thermal stability
4.high-speed advance and rapid feed for a significantly increased machine efficiency
5.constant accuracy and stability ensured by premium preloaded ball screws with integrated cooling
6.milling spindle with closed cooling circuit for maximum precision and durability at high-speed machining operations
7.superior mechanical properties of the total component package ensure longer tool life
8.easy accessibility of work table for easy setup and tooling
Two. Specifications of High Quality Drilling Machine And High Precision CNC Drilling Machine Tool :
| Unit | VMC850 | |
| Working area | ||
| Table dimensions | mm | 500*1000 |
| T-solt X width | mm | 5*18 |
| Table load capacity(max) | kg | 800 |
| X/Y/Z travel | mm | 800/500/550 |
| spindle nose-to-table distance | mm | 105-655 |
| Distance from spindle center line to column guide way surface | mm | 540 |
| Headstock | ||
| Spindel's rotational speed | rpm | 8,000 |
| Spindel taper | BT40 | |
| Spindel diameter | mm | 150 |
| Motor power of spindle | kW | 5.5/7.5 |
| Feed | ||
| Rapid feed X axis | mm/min | 18000 |
| Rapid feed Y axis | mm/min | 18000 |
| Rapid feed Z axis | mm/min | 15000 |
| Work feed X/Y/Z axis | mm/min | 1-10,000 |
| Accuracy | ||
| Positioning accuracy | mm | 0.015 |
| Repeatablity | mm | 0.005 |
| Tool carrier | ||
| Tool diameter/length | mm | 78/300 |
| Tool-changing time | sec | 3 |
| Tool magazine capacity | 20/24 | |
| Tool weight(max) | Kg | 12 |
| CNC sestem | FANUC-OI MD | |
| Weight/Dimensions | ||
| Weight | kg | 4800 |
| Dimentions(L*W*H) | mm | 2805*2300*2600 |
Three.chief configurations of Drilling Machine And High Precision CNC Drilling Machine Tool :
| Electric configurations of Drilling Machine And Top Precision CNC Drilling Machine Tool VMC850: | ||
| Travel No. | Name | Brand Habitat |
| 1 | CNC System | MITSUBISHI/FANUC(Japan)SIEMENS(Germany) |
| 2 | Drive motor | MITSUBISHI/FANUC(Japan) SIEMENS(Germany) |
| 3 | Spindle motor | MITSUBISHI/FANUC(Japan)SIEMENS(Germany) |
| 4 | Relay | SCHNEIDER(France) |
| 5 | Contactor | SCHNEIDER(France) |
| 6 | Breaker | SCHNEIDER(France) |
| 7 | Transformer | JUCHE(China) |
| 8 | Switch power supply | MEAN WELL(Taiwan) |
| 9 | Electron hand wheel | Japan/Germany |
| 10 | Water tank motor | China |
| Mechniacal configurations of Drilling Machine And Top Precision CNC Drilling Machine Tool VMC850: | ||
| Travel No. | Name | Brand Habitat |
| 1 | Spindle | PUSON(Taiwan ) |
| 2 | Coupling shaft | R+W(Germany) |
| 3 | Pressurizes vat | HAOCHENG or SANGPIN(Taiwan ) |
| 4 | Lead scrwe of three axles | YINTAI(Taiwan) |
| 5 | High accuratebeeline lead rail of three axles | YINTAI(Taiwan) |
| 6 | Lubricant oil road | CHINA |
| 7 | Axletree | NSK (Japan ) |
| 8 | 20 bamboo hat style or 24 manipulator tool store | China |
| 9 | Accurate round nut | Taiwan |
| 10 | Whole machine bolt | Taiwan |
Contact:Mr James Feng Tel:86+0531-81956191 Mobel:86+18575680287Skype:James-13412
1. Outside package: standard export wooden cases
2. Inner package: Plastic spraying, antirust grease and Stretch film
1.Excellent guarantee and after-sale-service
a. User-friendly English software and detailed videos/CD
b. Free operator training
c. Free maintenance within 1 year for whole machine except of cnc system which guarantee is 3 years
d. 24-hours technical support by Email or Telephone
2. High quality
The main parts of our machines are imported from Japan,Germany and USA. Some are made in Taiwan.
You are welcomed to visit our factory.
3. Low Price
We make sure that for same price, our quality is much more excellent.
4.Customized or special design are OK
We are looking for AGENTS in your countries, we’ll support machines and give low prices for our agents, and will support agents to take part in Exhibition in your countries, etc. If you are interested to be our agent, more details policy please feel free to contact me(James)
