- Size: 2400*1550*2500mm
- Place of Origin: Guizhou
- Brand Name: Hanover
- Model Number: TDC540
- Weight: 3200.000 kg

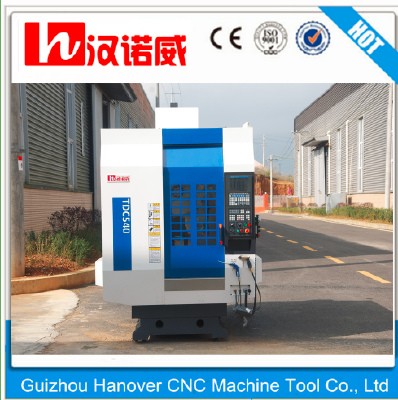

TDC540- High Quality CNC Milling machine and high pecesion CNC Machining center
The best option for sophisticated components’ batch processing such as communications, electronics, mobile phones and automobiles industries.
1. Mature and stable structure which is with three -linear guideway structure, large screw, 16T umbrella-like tool changer.
2. Rotational speed of spindle is no less than 12,000 rpm and rapid moving speed of three-axes is no less than 48 meters per minute.
3. The common M3 to M8 threaded hole of aluminum alloy material could be finished tapping within 1.3s.
4. With the cutters’ speedy rotational speed and quick feed,more high processing efficiency.
TDC540- High Quality CNC Milling machine and high pecesion CNC Machining S pecifications:
Item | TDC540 |
Worktable size(length*width)(mm) | 400*600 |
Worktable travel(X*Y*Z)(mm) | 510*400*310 |
T-slot dimension(amount--dimension*distance)(mm) | 3--14*100 |
Spindle conicity | BT30 |
Spindle's rotational speed (rpm) | 20000/24000 |
Tool magazine capacity | 16 |
Switching time of tool to tool(s) | 1.3 |
Max. cutting speed(m/min) | 10 |
Rapid moving speed(m/min) | 60 |
Distance from spindle center to column guideway(mm) | 460 |
Positioning accuracy(mm) | ±0.003 |
Re-positioning accuracy(mm) | ±0.002 |
General power(kw) | 10.5 |
Input power | 50Hz 380V |
Worktable loading capacity (kg) | 200 |
External dimension(length*width*height)(mm) | 2400*1550*2500 |
Net weight (kg) | 3200 |
Standard configurations | Optional configurations |
Siemens 828D controller system | FANUC oi MD or oi mate MD,Mitsubishi M70 |
Original Siemens complete servo | Taiwan SYNTEC cnc system |
Schneider electrical | Tool auto-checking instrument |
Constant-temperature oil cooler of spindle | Siemens,ABB,IDEC Electric |
Large flow cooling pump | Servo tool magazine |
Oil water separating device | Oil mist collector |
Automatic centralized lubrication device | Auto chip conveyor |
Outer-hanging Handheld pneumatic gun | 3-D probe(Automatic measure and calibrate) |
Full outer stainless steel inner defense and protection | Forth axis and accessories |
electric configurations of of vertical mill machine TDC540: | ||
Travel No. | Name | Brand Habitat |
1 | CNC System | MITSUBISHI/FANUC(Japan)SIEMENS(Germany) |
2 | Drive motor | MITSUBISHI/FANUC(Japan) SIEMENS(Germany) |
3 | Spindle motor | MITSUBISHI/FANUC(Japan)SIEMENS(Germany) |
4 | Relay | SCHNEIDER(France) |
5 | Contactor | SCHNEIDER(France) |
6 | Breaker | SCHNEIDER(France) |
7 | Transformer | JUCHE(China) |
8 | Switch power supply | MEAN WELL(Taiwan) |
9 | Electron hand wheel | Japan/Germany |
10 | Water tank motor | China |
mechniacal configurations of of vertical mill machine TDC540: | ||
Travel No. | Name | Brand Habitat |
1 | Spindle | PUSON(Taiwan ) |
2 | Coupling shaft | R+W(Germany) |
3 | Pressurizes vat | HAOCHENG or SANGPIN(Taiwan ) |
4 | Lead scrwe of three axles | YINTAI(Taiwan) |
5 | High accuratebeeline lead rail of three axles | YINTAI(Taiwan) |
6 | Lubricant oil road | CHINA |
7 | Axletree | NSK (Japan ) |
8 | 20 bamboo hat style or 24 manipulator tool store | China |
9 | Accurate round nut | Taiwan |
10 | Whole machine bolt | Taiwan |
Contact:Mr James FengTel:86+0531-81956191Mobel:86+18575680287Skype:James-13412
Packaging Drtails:1.outside package:wooden package or can be adjust for the machine's safey.
2.Inner package:plastic spraying antirust agrease and stretch film
Delivery Detail:30 days
1.Excellent guarantee and after-sale-service
a. User-friendly English software and detailed videos/CD
b. Free operator training
c. Free maintenance within 1 year for whole machine except of cnc system which guarantee is 3 years
d. 24-hours technical support by Email or Telephone
2. High quality
The main parts of our machines are imported from Japan,Germany and USA. Some are made in Taiwan.
You are welcomed to visit our factory.
3. Low Price
We make sure that for same price, our quality is much more excellent.
4.Customized or special design are OK
We are looking for AGENTS in your countries, we’ll support machines and give low prices for our agents, and will support agents to take part in Exhibition in your countries, etc. If you are interested to be our agent, more details policy please feel free to contact me(James)
