- Size: 1620*1210*1305mm
- Place of Origin: Jiangsu
- Brand Name: Hanover
- Model Number: TSC36L
- Weight: 1500.000 kg
ONE.Heavy turning center cnc lathe machine TSC36L Features:
1.Mo no-block cast frame with inclined bed construction combines inherent rigidity with product- specific design.
2.Inclined bed with an angle of 45° ensure smooth flow of chips to the standard chip conveyor.
3. Extrawide, hardened rectangular guides ensure quiet operation and longterm precision - Even for complex manufacturin taks, like heavy roughing work or interrupted cuts
4.Exact positioning hydraulic 8-station or 10-station tool turret
5.Excellent chip removal and standard chip conveyor support an efficient and cost-effective machining operation
6.Hydraulic tailstock and hydraulic hollow chuck can be controlled via foot switch (standard)
7.Efficient coolant system with coolant nozzles at every tool mount
8.Fanuc 0i-Mate TD with Manual Guide 0i scores with high reliability and maximum availability
9.High-quality preloaded ball screws with powerful servo-axis-drive ensure excellent positioning accuracy and repeatability .
TSC36L Heavy turning center cnc lathe machine TSC36L Specifications:
| Specifications | Unit | CNC inclined bed 36L |
| Control | Fanuc 0i-TD | |
| Working area | ||
| Turning diameter over bed (max) | mm | 400 |
| Turning diameter over support( max ) | mm | 360 |
| Part length(max) | mm | 350 |
| X axis travel | mm | 210 |
| Z axis travel | mm | 400 |
| Headstock | ||
| Speed range | rpm | 5000 |
| Spindle mount | ISO A2-5 | |
| Lathe chuck diameter | mm | 20 |
| Spindle bore | mm | 56 |
| Feed | ||
| Rapid feed X axis | mm/min | 24000 |
| Rapid feed Z axis | mm/min | 18000 |
| Tool Carrier | ||
| Number of tool stations | quantity | 8/10 |
| Tool shank dimensions | mm | 25*25 |
| Boring bar holder diameter | mm | 65 |
| Tailstock | ||
| Tailstock taper | MT4 | |
| Tailstock quill diameter | mm | 65 |
| Tailsyock quill stroke | mm | 80 |
| Accuracy | ||
| Positioning accuracy X/Y/Z axis | mm | 0.006 |
| Repeatability X/Y/Z axis | mm | 0.003 |
| Drive capacities | ||
| Main motor rating | kW | 5.5-7.5 |
| Motor rating Y/Z axis | kW | 1.8 |
| Total connected load | kVA | 12 |
| Dimensions/Weight | ||
| Dimensions(L*W*H) | mm | 1620*1210*1305 |
| Weight | kg | 1500 |
Three.chief configurations of CNC slant bed lathe-TSC36L :
| Standard configurations | Optional configurations |
| Single spindle | Fanuc,Siemens808D,KND1000TI cnc controller |
| Frequency conversion stepless speed regulation | Hydraulic chuck or Pneumatic chuck |
| CNC system: GSK980TB2 | Hydraulic tailstock or Pneumatic tailstock |
| Manual 3-jaw chuck, manual tailstock | Soft jaws/ 4 jaw chuck |
| 8-position Hydraulic tool turret | 12-position Hydraulic tool turret |
| Automatic electronic pump lubrication, Lighting system | Automatic bar feeding |
| Automatic Cooling system | Automatic chip conveyor |
Contact:Mr James Feng Tel:86+0531-81956191 Mobel:86+18575680287Skype:James-13412

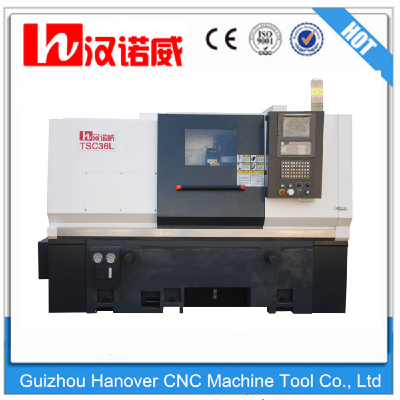

Four Pictures of Heavy turning center cnc lathe machine TSC36L :
1. Outside package: standard export wooden cases
2. Inner package: Plastic spraying, antirust grease and Stretch film
Guizhou Hanover CNC Machine Tool Co., Ltd was founded in 2013,and is located in Jinzhong Economic Development District, Danzhai County, Qiandongnan Canton, Guizhou Province, China. Its core members and key staff have specilized in machine tools for over fifteen years. It mainly manufactures and sells complete CNC machine tools such as slant bed CNC lathe, flat bed CNC lathe, turning and milling composite machine, vertical machining center, drilling and tapping machining center etc. It aims to develop in the direction of research and develop and manufacture professional CNC machine tools, industrial automation products and flexible productio line. Its products are continuous best-selling with superior quality.
1.Excellent guarantee and after-sale-service
a. User-friendly English software and detailed videos/CD
b. Free operator training
c. Free maintenance within 1 year for whole machine except of cnc system which guarantee is 3 years
d. 24-hours technical support by Email or Telephone
2. High quality
The main parts of our machines are imported from Japan,Germany and USA. Some are made in Taiwan.
You are welcomed to visit our factory.
3. Low Price
We make sure that for same price, our quality is much more excellent.
4.Customized or special design are OK
We are looking for AGENTS in your countries, we’ll support machines and give low prices for our agents, and will support agents to take part in Exhibition in your countries, etc. If you are interested to be our agent, more details policy please feel free to contact me(James)
