- Size: 2600*1750*1800mm
- Place of Origin: Jiangsu
- Brand Name: Hanover
- Model Number: TCK45H
- Weight: 3700.000 kg

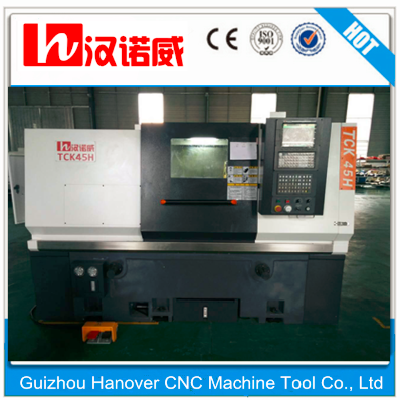

ONE. Heavy Duty inclined bed lathe design cnc lathe machine TSC45H Features:
1.Mono-block cast frame with 45° inclined bed construction made of premium cast-iorn to ensure maximum rigidity and easy chip removal.
2Extrawide, hardened rectangular guides ensure quiet operation and longterm precision - Even for complex
manufacturinaks, like heavy roughing work or interrupted cuts
3A total of 5 highprecision spindle bearing groups ensure optimum turning results, even at highaxial and radial loads
4Exact positioning hydraulic 8-station or 10-station tool turret
5Excellent chip removal and standard chip conveyor support efficient and cost effective machining operation
6Hydraulic tailstock and hydraulic hollow chuck can be controlled via foot switch (standard)
7Efficient coolant system with coolant nozzles at every tool mount
8Fanuc 0i-Mate TD with Manual Guide 0i scores with high reliability and maximum availability
9High-quality preloaded ball screws with powerful servo-axis drive ensure excellent positioning accuracy and repeatability .
Two. Heavy Duty inclined bed lathe design cnc lathe machine TSC45HSpecifications:
Specifications | Unit | inclined bed lathe 45L | inclined bed 45H |
Control | Fanuc 0i-TD | Fanuc 0i-TD | |
Working area | |||
Turning diameter over bed (max) | mm | 560 | 600 |
Turning diameter over support(max) | mm | 450 | 450 |
Part length(max) | mm | 500 | 500 |
X axis travel | mm | 250 | 250 |
Z axis travel | mm | 610 | 610 |
Headstock | |||
Speed range | rpm | 4200 | 4200 |
Spindle mount | ISO A2-6 | ISO A2-6 | |
Lathe chuck diameter | mm | 20.3 | 20.3 |
Spindle bore | mm | 66 | 66 |
Feed | |||
Rapid feed X axis | mm/min | 24000 | 18000 |
Rapid feed Z axis | mm/min | 18000 | 12000 |
Tool Carrier | |||
Number of tool stations | quantity | 8/12 | 8/12 |
Tool shank dimensions | mm | 25*25 | 25*25 |
Boring bar holder diameter | mm | 80 | 80 |
Tailstock | |||
Tailstock taper | MT4 | MT4 | |
Tailstock quill diameter | mm | 80 | 80 |
Tailsyock quill stroke | mm | 80 | 80 |
Accuracy | |||
Positioning accuracy X/Y/Z axis | mm | 0.006 | 0.008 |
Repeatability X/Y/Z axis | mm | 0.003 | 0.004 |
Drive capacities | |||
Main motor rating | kW | 11-15 | 11-15 |
Motor rating Y/Z axis | kW | 1.8 | 1.8 |
Total connected load | kVA | 15 | 15 |
Dimensions/Weight | |||
Dimensions(L*W*H) | mm | 2550*1750*1820 | 2600*1750*1800 |
Weight | kg | 3500 | 3700 |
Three.chief configurations of Heavy Duty turning center cnc lathe machine TSC45H
Standard configurations | Optional configurations |
Single spindle | Fanuc,Siemens808D,KND1000TI cnc controller |
Frequency conversion stepless speed regulation | Hydraulic chuck or Pneumatic chuck |
CNC system: GSK980TB2 | Hydraulic tailstock or Pneumatic tailstock |
Manual 3-jaw chuck, manual tailstock | Soft jaws/ 4 jaw chuck |
8-position Hydraulic tool turret | 12-position Hydraulic tool turret |
Automatic electronic pump lubrication, Lighting system | Automatic bar feeding |
Automatic Cooling system | Automatic chip conveyor |
Contact:Mr James Feng Tel:86+0531-81956191 Mobel:86+18575680287Skype:James-13412
1. Outside package: standard export wooden cases
2. Inner package: Plastic spraying, antirust grease and Stretch film
1.Excellent guarantee and after-sale-service
a. User-friendly English software and detailed videos/CD
b. Free operator training
c. Free maintenance within 1 year for whole machine except of cnc system which guarantee is 3 years
d. 24-hours technical support by Email or Telephone
2. High quality
The main parts of our machines are imported from Japan,Germany and USA. Some are made in Taiwan.
You are welcomed to visit our factory.
3. Low Price
We make sure that for same price, our quality is much more excellent.
4.Customized or special design are OK
We are looking for AGENTS in your countries, we’ll support machines and give low prices for our agents, and will support agents to take part in Exhibition in your countries, etc. If you are interested to be our agent, more details policy please feel free to contact me(James)
