- Size: 2550*1750*1820mm
- Place of Origin: Jiangsu
- Brand Name: Hanover
- Model Number: TSC45L
- Weight: 3500.000 kg

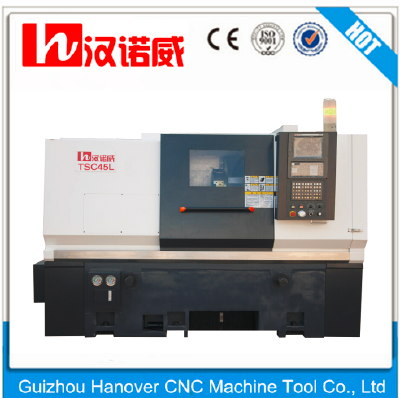

ONE. Heavy Duty Slant Bed CNC Lathe Machine with Rigidity Hydraulic Tailstock TSC45L Features:
1.The machine frame features a proven,rigid 45° slant bed construction made of premium cast- iron to ensure maximum rigidity and easy chip removal.
2.Heavy Rectangular guideways provide excellent rigidity and maximum precision.
3.The workspace is enclosed on all sides with easy access through a large sliding door .
4.A high-performance chip conveyors is included in the standard equipment of TSC45L .
5.Rigidity and Productivity-includes a heavy 8-station hydraulic turret for automatic program-controlled tool changes.
6.High-rigidty preloaded ball screws with powerful servo-axle-drive ensure excellent positioning accuracy and repetablity at high axis dynamics.
7.Efficient coolant system with coolant nozzles at every tool mount.
8.Fanuc Oi-Mate TD with Manual Guide Oi scrores with high reliability and avaliability.
Two. Heavy Duty Slant Bed CNC Lathe Machine with Rigidity Hydraulic Tailstock TSC45L Specifications:
| Specifications | Unit | CNC Slant bed 45L | CNC Slant bed 45H |
| Control | Fanuc 0i-TD | Fanuc 0i-TD | |
| Working area | |||
| Turning diameter over bed (max) | mm | 560 | 600 |
| Turning diameter over support(max) | mm | 450 | 450 |
| Part length(max) | mm | 500 | 500 |
| X axis travel | mm | 250 | 250 |
| Z axis travel | mm | 610 | 610 |
| Headstock | |||
| Speed range | rpm | 4200 | 4200 |
| Spindle mount | ISO A2-6 | ISO A2-6 | |
| Lathe chuck diameter | mm | 26.7 | 26.7 |
| Spindle bore | mm | 66 | 66 |
| Feed | |||
| Rapid feed X axis | mm/min | 24000 | 18000 |
| Rapid feed Z axis | mm/min | 18000 | 12000 |
| Tool Carrier | |||
| Number of tool stations | quantity | 8/12 | 8/12 |
| Tool shank dimensions | mm | 25*25 | 25*25 |
| Boring bar holder diameter | mm | 80 | 80 |
| Tailstock | |||
| Tailstock taper | MT4 | MT4 | |
| Tailstock quill diameter | mm | 80 | 80 |
| Tailsyock quill stroke | mm | 80 | 80 |
| Accuracy | |||
| Positioning accuracy X/Y/Z axis | mm | 0.006 | 0.008 |
| Repeatability X/Y/Z axis | mm | 0.003 | 0.004 |
| Drive capacities | |||
| Main motor rating | kW | 11-15 | 11-15 |
| Motor rating Y/Z axis | kW | 1.8 | 1.8 |
| Total connected load | kVA | 15 | 15 |
| Dimensions/Weight | |||
| Dimensions(L*W*H) | mm | 2550*1750*1820 | 2800*1900*1850 |
| Weight | kg | 3600 | 3700 |
Three.chief configurations of Heavy Duty Slant Bed CNC Lathe Machine with Rigidity Hydraulic Tailstock TSC45L
| Standard configurations | Optional configurations |
| CNC system: GSK980TB2 | Taiwan Syntec CNC System |
| AC servo motor | Siemens808D,KND1000TI cnc controller |
| Sleeve spindle | Hydraulic chuck or Pneumatic chuck |
| 8“ 3-jaw Manual chuck,Φ200 | Soft jaws/ 4 jaw chuck |
| 8-station Hydraulic tool turret | Gang tool |
| Automatic electronic pump lubrication, Lighting system | 12-position Hydraulic tool turret |
| Automatic Cooling system | Automatic chip conveyor |
Contact:Mr James FengTel:86+0531-81956191Mobel:86+18575680287Skype:James-13412
1. Outside package: standard export wooden cases
2. Inner package: Plastic spraying, antirust grease and Stretch film
1.Excellent guarantee and after-sale-service
a. User-friendly English software and detailed videos/CD
b. Free operator training
c. Free maintenance within 1 year for whole machine except of cnc system which guarantee is 3 years
d. 24-hours technical support by Email or Telephone
2. High quality
The main parts of our machines are imported from Japan,Germany and USA. Some are made in Taiwan.
You are welcomed to visit our factory.
3.Suitable Price
We make sure that for same price, our quality is much more excellent.
4.Customized or special design are OK
We are looking for AGENTS in your countries, we’ll support machines and give low prices for our agents, and will support agents to take part in Exhibition in your countries, etc. If you are interested to be our agent, more details policy please feel free to contact me(James)
