ONE.China cnc turning machine with 4 station tool holder-CK6163
1.Rigid construction of the machine frame,the flat bed made of premium Yunnan cast-iron.
2.Wide V-block guides,hardened-superior rigidity of the lathe flat bed .
3.Headstock and main spindle and gears were constructed to ensure temperature balance and minimum heat influence.
4.Converter is with close loop which could directly detect the signals from spindle encoder. Once rotational speed of spindle slo wed down, the converter would immediately start to close loop. And its output n.m is over twice as much as that of rating in 30s and cut down the possibility of lathes’ breakdown.
5.The solid tailstock has a large quill with MT4 taper and is especially rigid and load-resistant
6.An automatic 4-station tool turret increases productivity even in small batch productions
7.Manual control and easy set-up and measuring of tools and workpieces
8.automatic central lubrication for simplified maintenance
Two. China cnc turning machine with 4 station tool holder-CK6163 Specifications:
Specifications Proton | Unit | CK6163 |
Working area | ||
Max.turning diameter over bed | mm | 630 |
Max.turning diameter over support | mm | 350 |
Part length(max.) | mm | 1000 |
Headstock | ||
main transmission | 3-step gear with variable speed | |
spindle bore | mm | 105 |
spindle mount | ISO C-11 | |
speed range | rpm | 1000 |
Tool turret | ||
tool stations | 4 | |
tool diameter | mm | 35 |
Accuracy | ||
positioning accuracy | mm | 0.025 |
repeatability | mm | ±0.005 |
workpiece machining precision | IT-6-IT-7 | |
processing Roughness | Ra1.6 | |
Tailstock | ||
tailstock quill stroke | mm | 250 |
tailstock quill diameter | mm | 95 |
tailstock taper | MT5 | |
Drive Capacities | ||
main motor rating | kw | 11 |
motor rating X /Z axis | kw | 3.1/4.2 |
Dimensions/Weight | ||
overall dimensions(L*W*H) | mm | 3200*1820*1710 |
weight | kg | 3400 |
Three.chief configurations of China cnc turning machine with 4 station tool holder-CK6163
Standard configurations | Optional configurations |
Operator manual and programming instructions | Siemens 808D/KND1000TI cnc controller system |
Premium cast-iron construction ---YUNNAN | Hydraulic chuck or Pneumatic chuck |
Wide V-block guide,hardened and ground | Hydraulic tailstock or Pneumatic tailstock |
Rigid headstock and main spindle | Soft jaws/ 4 jaw chuck |
4-station electrical tool turret | 6/8-station electric tool turret |
Automatic central lubrication | Automatic bar feeding |
Automatic coolant system | Automatic chip conveyor |
CNC system: Fanuc | |
operating tools | |
Worke lamp | |
hand-wheel | |
USB port |

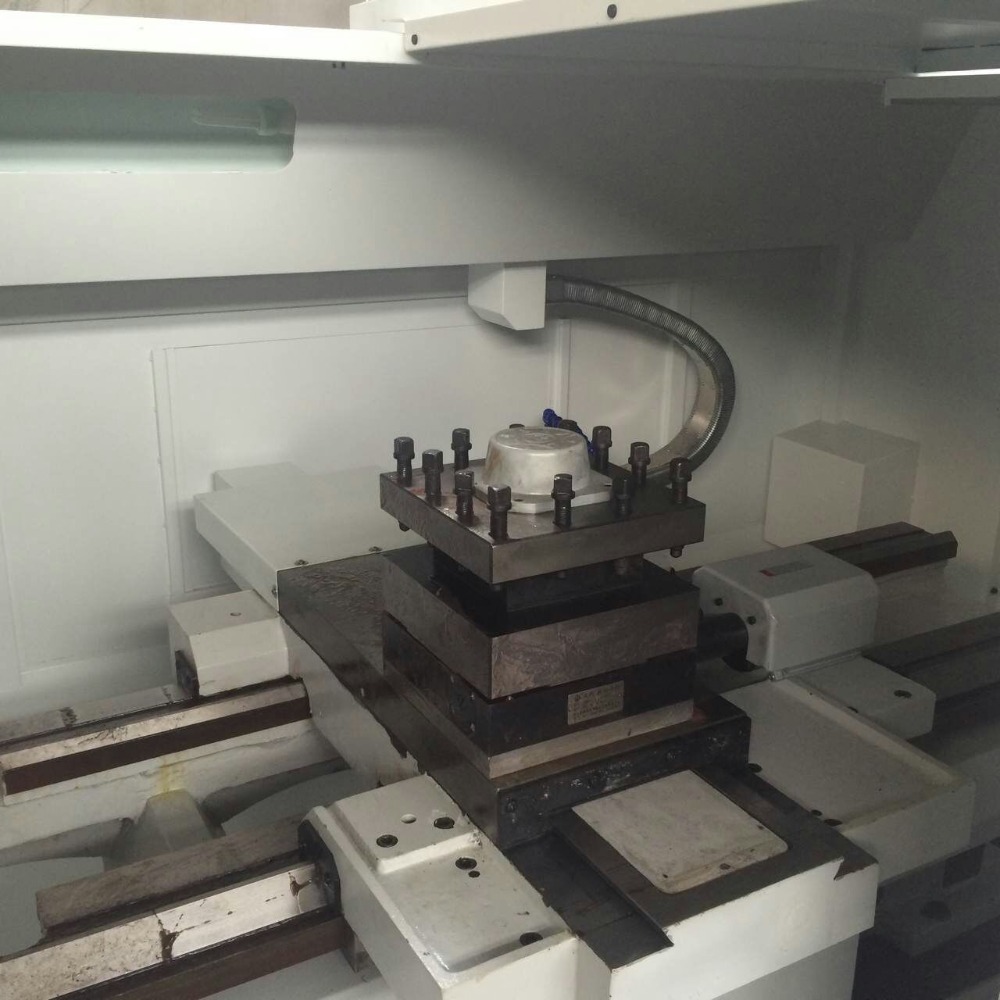

Four.Pictures of China cnc turning machine with 4 station tool holder-CK6163 :
CK6136-Flat Bed CNC Lathe packages:
1. Outside package: standard export wooden cases
2. Inner package: Plastic spraying, antirust grease and Stretch film
1.Excellent guarantee and after-sale-service
a. User-friendly English software and detailed videos/CD
b. Free operator training
c. Free maintenance within 1 year for whole machine except of cnc system which guarantee is 3 years
d. 24-hours technical support by Email or Telephone
2. High quality
The main parts of our machines are imported from Japan,Germany and USA. Some are made in Taiwan.
You are welcomed to visit our factory.
3. Low Price
We make sure that for same price, our quality is much more excellent.
4.Customized or special design are OK
We are looking for AGENTS in your countries, we’ll support machines and give low prices for our agents, and will support agents to take part in Exhibition in your countries, etc. If you are interested to be our agent, more details policy please feel free to contact me (James)
