- Size: 2250*1600*1890mm
- Place of Origin: Guizhou
- Brand Name: Hanover
- Model Number: CKX40L
- Weight: 2800.000 kg

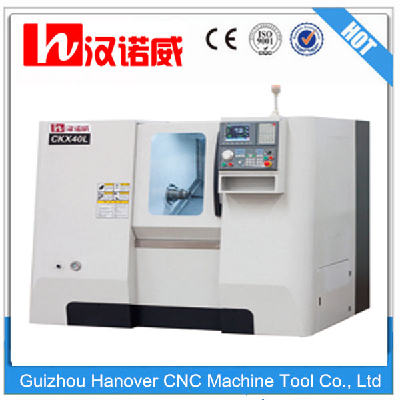

ONE. China cnc slant bed lathe with 3 jaw chuck in lower price CKX40L Features:
Essential Allocations of Milling and Turning Composite Lathe Based on Turning Machine
1. The Spindle Part
a. Servo Power: Adopt AC servo spindle motor and digital driver which could enable spindle achieve arbitrary positioning on circumference and C-axis’s control function.
b. Accurate Gear Ratio: With main motor connecting spindle with synchronous belts and synchronous belt pulley, it could meet demands of accurate gear ratio and achieve accurate arbitrary spindle rotation and positioning.
c. Band Brake Device: Add braking disk on the end of spindle. After positioning, it brakes with one or two oil cylinder or air cylinder to achieve the processing requirements such as drilling, milling and tapping on the workpieces’ circumference and their end surfaces.
2. The Feed Part
a. Long travel and large space of X-axis: with long travel and long sliding plate, even attached with T-shape trough. It could achieve the mixed packing with power head, power deta, cutters arraying electric tool holder and hydraulic deta.
b. Accurate orientation with ball screw middle placed: ball screw middle placed, adopt double linear guideway or double triangular guideway guiding support.
3. The Power Head Part
a. Power head/Electric spindle: low speed and heavy cutting force occasion, adopt mechanical power head, converter motor or AC servo motor to drive. When with high speed, adopt electric spindle, middle-frequency converter or AC servo motor to drive, which could achieve processing such as drilling, milling, grinding, tapping and chamfering.
b. Power deta: install radial or axial power head on power deta arbitrarily and realize composite processing easily. It is simple and clear with space saving.
c. Y-axis power head: when more power heads are needed, Y-axis power are adopted in order to avoid interference. Commonly, there are three each power heads from axial power heads and radial power heads for Y-axis to convert. Combined with hydraulic deta’s quota and usage, it could finish more complicated composite processing.
TWO. China cnc slant bed lathe with 3 jaw chuck in lower price CKX40L Specifecations
| Item | CKX40L - CNC Turning Machine |
| Max. swing diameter over bed(mm) | 440 |
| Max. processing diameter(mm) | 400 |
| Max. processing length(mm) | 230 |
| Spindle's rotational speed range(rpm/min) | 6000 |
| Spindle motor power(kw) | 5.5 |
| Spindle bore diameter(mm) | Φ56 |
| X-axis max. travel | 500 |
| Z-axis max. travel | 300 |
| Positioning accuracy | 0.008 |
| Repositioning accuracy | 0.005 |
| Workpieces processing accuracy | IT6--IT7 |
| Processing ellipticity | 0.005 |
| Cutter position numbers | 8 station turret |
| Input power(kw) | 50Hz 380V |
| External dimension(length*width*height)(mm) | 2250*1600*1890 |
| Net weight(kg) | 2800 |
| Standard configurations | Optional configurations |
| CNC system: Siemens808D | Taiwan Syntec CNC System |
| Siemens servo motor | GSK980TB2,KND1000TI cnc controller |
| Germany Rexroth Linear rail | Hydraulic chuck or Pneumatic chuck |
| 5“ 3-jaw Manual chuck,Φ200 | Soft jaws/ 4 jaw chuck |
| 8-station Hydraulic tool turret | Gang tool |
| Automatic electronic pump lubrication, Lighting system | 10-position Hydraulic tool turret |
| Automatic Cooling system | Automatic chip conveyor |
Contact:Mr James Feng Tel:86+0531-81956191 Mobel:86+18575680287Skype:James-13412
CKX40L - Slant Bed CNC Turning Lathe packages:
1. Outside package: standard export wooden cases
2. Inner package: Plastic spraying, antirust grease and Stretch film
The history of Guizhou Hanover numerial control machine is over 20 years.During the years of development and exploring, we has accumulated a large of experience,and also has intensive study in processing parts.As long as the customers tell us what kind of parts they need ,we will recommend the most appropriate lathes for them.
Over the past 20 years, we survived. The reason of our survival was because of concentration and following the trend of the times. we stick to researching and developing when the economy develops. The survival of our company depends on the qu a lity of the products when the economic depression. That is the philosophy of our company.
1.Excellent guarantee and after-sale-service
a. User-friendly English software and detailed videos/CD
b. Free operator training
c. Free maintenance within 1 year for whole machine except of cnc system which guarantee is 3 years
d. 24-hours technical support by Email or Telephone
2. High quality
The main parts of our machines are imported from Japan,Germany and USA. Some are made in Taiwan.
You are welcomed to visit our factory.
3. Low Price
We make sure that for same price, our quality is much more excellent.
4.Customized or special design are OK
We are looking for AGENTS in your countries, we’ll support machines and give low prices for our agents, and will support agents to take part in Exhibition in your countries, etc. If you are interested to be our agent, more details policy please feel free to contact me(James)
