- Size: 2500*1400*1700MM
- Place of Origin: Guizhou
- Brand Name: Hanover
- Model Number: CKX500L
- Weight: 3300.000 kg

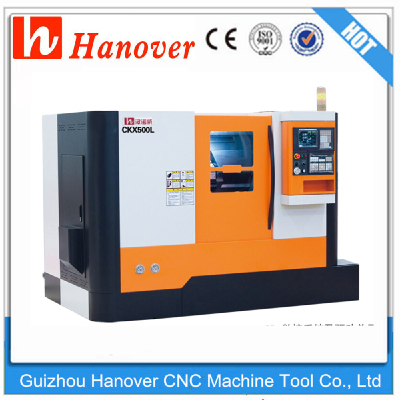

ONE. CNC Turning Machine with Lathe Machine Price List CKX500L Features:
1.Larger models also use the proven, rigid 45° inclined bed construction made of premium cast-iron to ensure maximum rigidity and easy chip removal.
2.Rectangular guideways provide excellent rigidity and maximum precision
3.10 Hp main spindle motor provides high torque across the entire speed range
4.The workspace is enclosed on all sides with easy access through a large sliding door for set-up, tooling and unloading
5.Hydraulic 6 in chuck and hydraulic tailstock are included in standard equipment
6.Control technology with superior reliability
7.Hydraulic 8 in chuck and hydraulic tailstock are included in standard equipment
8.An automatic lubrication system reduces the operator's workload and simplifies maintenance.
TWO. CNC Turning Machine with Lathe Machine Price List CKX500L Specifications:
| Specifications | Unit | CNC inclined bed500L | CNC inclined bed500F |
| Control | Fanuc 0i-TD | Fanuc 0i-TD | |
| Working area | |||
| Turning diameter over bed (max) | mm | 700 | 700 |
| Turning diameter over support( max ) | mm | 530 | 520 |
| Part length(max) | mm | 520 | 490 |
| X axis travel | mm | 260 | 260 |
| Z axis travel | mm | 550 | 550 |
| Headstock | |||
| Speed range | rpm | 3500 | 3500 |
| Spindle mount | ISO A2-6 | ISO A2-6 | |
| Lathe chuck diameter | mm | 26.7 | 26.7 |
| Spindle bore | mm | 82 | 82 |
| Feed | |||
| Rapid feed X axis | mm/min | 24000 | 16000 |
| Rapid feed Z axis | mm/min | 24000 | 16000 |
| Tool Carrier | |||
| Number of tool stations | quantity | 8/12 | 8/12 |
| Tool shank dimensions | mm | 25*25 | 25*25 |
| Boring bar holder diameter | mm | 75 | 75 |
| Tailstock | |||
| Tailstock taper | MT5 | MT5 | |
| Tailstock quill diameter | mm | 75 | 75 |
| Tailsyock quill stroke | mm | 80 | 80 |
| Accuracy | |||
| Positioning accuracy X/Y/Z axis | mm | 0.008 | 0.008 |
| Repeatability X/Y/Z axis | mm | 0.004 | 0.004 |
| Drive capacities | |||
| Main motor rating | kW | 11 | 11 |
| Motor rating Y/Z axis | kW | 1.8 | 1.8 |
| Total connected load | kVA | 15 | 15 |
| Dimensions/Weight | |||
| Dimensions(L*W*H) | mm | 3100*1750*1800 | 3100*1750*1800 |
| Weight | kg | 3200 | 3300 |
Three.chief configurations of CNC Turning Machine with Lathe Machine Price List CKX500L :
| Standard configurations | Optional configurations |
| Single spindle | Fanuc,Siemens808D,KND1000TI cnc controller |
| Frequency conversion stepless speed regulation | Hydraulic chuck or Pneumatic chuck |
| CNC system: GSK980TB2 | Hydraulic tailstock or Pneumatic tailstock |
| Manual 3-jaw chuck, manual tailstock | Soft jaws/ 4 jaw chuck |
| 8-position Hydraulic tool turret | 12-position Hydraulic tool turret |
| Automatic electronic pump lubrication, Lighting system | Automatic bar feeding |
| Automatic Cooling system | Automatic chip conveyor |
Contact:Mr James Feng Tel:86+0531-81956191 Mobel:86+18575680287Skype:James-13412
1. Outside package: standard export wooden cases
2. Inner package: Plastic spraying, antirust grease and Stretch film
The history of Guizhou Hanover numerial control machine is over 20 years.During the years of development and exploring, we has accumulated a large of experience,and also has intensive study in processing parts.As long as the customers tell us what kind of parts they need ,we will recommend the most appropriate lathes for them.
Over the past 20 years, we survived. The reason of our survival was because of concentration and following the trend of the times. we stick to researching and developing when the economy develops. The survival of our company depends on the qu a lity of the products when the economic depression. That is the philosophy of our company.
1.Excellent guarantee and after-sale-service
a. User-friendly English software and detailed videos/CD
b. Free operator training
c. Free maintenance within 1 year for whole machine except of cnc system which guarantee is 3 years
d. 24-hours technical support by Email or Telephone
2. High quality
The main parts of our machines are imported from Japan,Germany and USA. Some are made in Taiwan.
You are welcomed to visit our factory.
3. Low Price
We make sure that for same price, our quality is much more excellent.
4.Customized or special design are OK
We are looking for AGENTS in your countries, we’ll support machines and give low prices for our agents, and will support agents to take part in Exhibition in your countries, etc. If you are interested to be our agent, more details policy please feel free to contact me(James)
