- Size: 2100*1500*1700mm
- Place of Origin: Jiangsu
- Brand Name: Hanover
- Model Number: CKX360E
- Weight: 3700.000 kg
ONE. CNC Slant bed lathe CKX360E Features:
1. Three rectangular guideway in Z-axis
Z-axis is composted of three rectangular guideway , with excellent orientation, great earthquake resistance and good stability. It displays its obvious cutting advantage and durability in processing fields such as turn bearing rings and drill bore on Z-axis
2. 45-angle whole slant lathe bed
With the 45-angle oblique layout and hollow tubulose whole lathe bed, it helps to greatly improve the bending resistance and torsional stiffness resiatance of machine tools. The high torsion and stability of lathe bed decides the high precision of lathe itself.
TWO.CKX360E-Slant Bed CNC Lathe Specifications:
Item | CKX360E - Slant Bed CNC Turning Lathe |
Max. swing diameter over bed | Φ360 |
Max. swing diameter over slide | Φ220 |
Max. processing diameter | 36 |
Max. processing length | 400 |
Spindle's rotational speed range | 200--3000 |
Spindle nose form | A2--6 |
Spindle form | Independent spindle |
Spindle motor power | 5.5/7.5 |
Chuck specification(manual chuck) | Manual three-jaw/8" Hydraulic |
Spindle bore diameter | Φ53 |
X-axis max. travel | 300 |
Z-axis max. travel | 400 |
X-axis rapid moving speed | 8000 |
Z-axis rapid moving speed | 8000 |
Positioning accuracy | 0.015 |
Repositioning accuracy | 0.007 |
Processing ellipticity | 0.01 |
Input power | 50Hz 380V |
External dimension(length*width*height) | 2100*1500*1700 |
Net weight | 3700 |
Three.chief configurations of CNC slant bed lathe-CKX500F :
Standard configurations | Optional configurations |
CNC system: GSK980TB2 | Taiwan Syntec CNC System |
AC servo motor | Siemens808D,KND1000TI cnc controller |
Sleeve spindle | Hydraulic chuck or Pneumatic chuck |
8“ 3-jaw Manual chuck,Φ200 | Soft jaws/ 4 jaw chuck |
8-station Hydraulic tool turret | Gang tool |
Automatic electronic pump lubrication, Lighting system | 12-position Hydraulic tool turret |
Automatic Cooling system | Automatic chip conveyor |

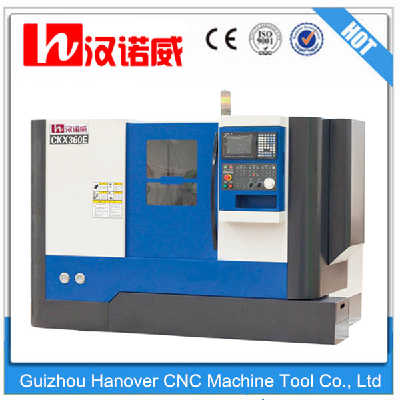

Four Pictures of CKX360E - Slant Bed Metal Cutting CNC Lathe :
CKX360E - Slant Bed CNC Turning Lathe packages:
1. Outside package: standard export wooden cases
2. Inner package: Plastic spraying, antirust grease and Stretch film
Three manufacturing bases
1,CNC lathe manufacturing base
The quality of the CNC lathes determins the quality of machine tools.The best cast iron of China comes Yunan,that is one of important reasons why we found Taizheng CNC lathe manufacturing base in Yunnan.The excellent cast iron of Yunnan offers the best guarantee of all of our produts.
2.Numerical control machine tools processing bases Hanover numberical control machine originated from Wenzhou and got strengthened in Nanjing.Now,the bases of Nanjing-xingao numberil contral machine tools focus on producing numberial contral machine tools.After
20 years of strenuous efforts,all we want is to produce the high-quality machines.
3.CNC Vertical machining center manufacturing bases
Guizhou Hanover numberical control machine concentrates on processing center.With the requirement of processing improving,lathes also need improving.That is the background of Guizhou Hanover numberial control machine.After the company found,it focus on processing tapping center,and we also pursue quality and development.
The history of Guizhou Hanover numerial control machine is over 20 years.During the years of development and exploring, we has accumulated a large of experience,and also has intensive study in processing parts.As long as the customers tell us what kind of parts they need ,we will recommend the most appropriate lathes for them.
Over the past 20 years, we survived. The reason of our survival was because of concentration and following the trend of the times. we stick to researching and developing when the economy develops. The survival of our company depends on the quality of the products when the economic depression. That is the philosophy of our company.
.
1.Excellent guarantee and after-sale-service
a. User-friendly English software and detailed videos/CD
b. Free operator training
c. Free maintenance within 1 year for whole machine except of cnc system which guarantee is 3 years
d. 24-hours technical support by Email or Telephone
2. High quality
The main parts of our machines are imported from Japan,Germany and USA. Some are made in Taiwan.
You are welcomed to visit our factory.
3. Low Price
We make sure that for same price, our quality is much more excellent.
4.Customized or special design are OK
We are looking for AGENTS in your countries, we’ll support machines and give low prices for our agents, and will support agents to take part in Exhibition in your countries, etc. If you are interested to be our agent, more details policy please feel free to contact me(James)
